SFL – The Premier Choice for High-Performance Flue Systems in Commercial Heating providing tailored flue solutions for a wide range of applications.

03 February 2025

In today’s evolving commercial heating sector, high-performance flue systems are essential. SFL Flue & Chimneys is a trusted name in providing tailored flue solutions for a wide range of applications, including condensing boilers, biomass systems, Combined Heat and Power (CHP) units, and steam boilers. As demand grows for energy-efficient and sustainable heating, SFL’s products deliver exceptional performance and durability.

SFL’s product families — SUPRA PLUS®, NOVA®, and EUROPA® — are designed for longevity, efficiency, and regulatory compliance.

Flue Systems for Condensing Boilers: Essential for Efficiency

Condensing boilers, commonly used in commercial environments like hotels and hospitals, require flue systems designed to manage acidic condensation. Efficient flue design is key to maintaining optimal performance.

Key Design Considerations:

• Pooling Reduction:A 3-5% fall prevents condensate pooling, ensuring efficient drainage and system longevity.
  • Condensate Drains: Traps in condensate drains protect the flue draught, ensuring consistent performance.
  • Test Points: Regular inspection is facilitated by strategically placed test points.



Case Study: Lymington Hospital Condensing Boiler Install

At Lymington Hospital, the challenge was to install a flue system for a new condensing boiler while managing space constraints and ensuring optimal efficiency. SFL’s flue solution incorporated both pooling reduction and condensate traps, ensuring the system remained efficient despite the hospital’s busy environment. The installation has contributed to the hospital’s energy savings while reducing emissions, showcasing the adaptability of SFL’s products.

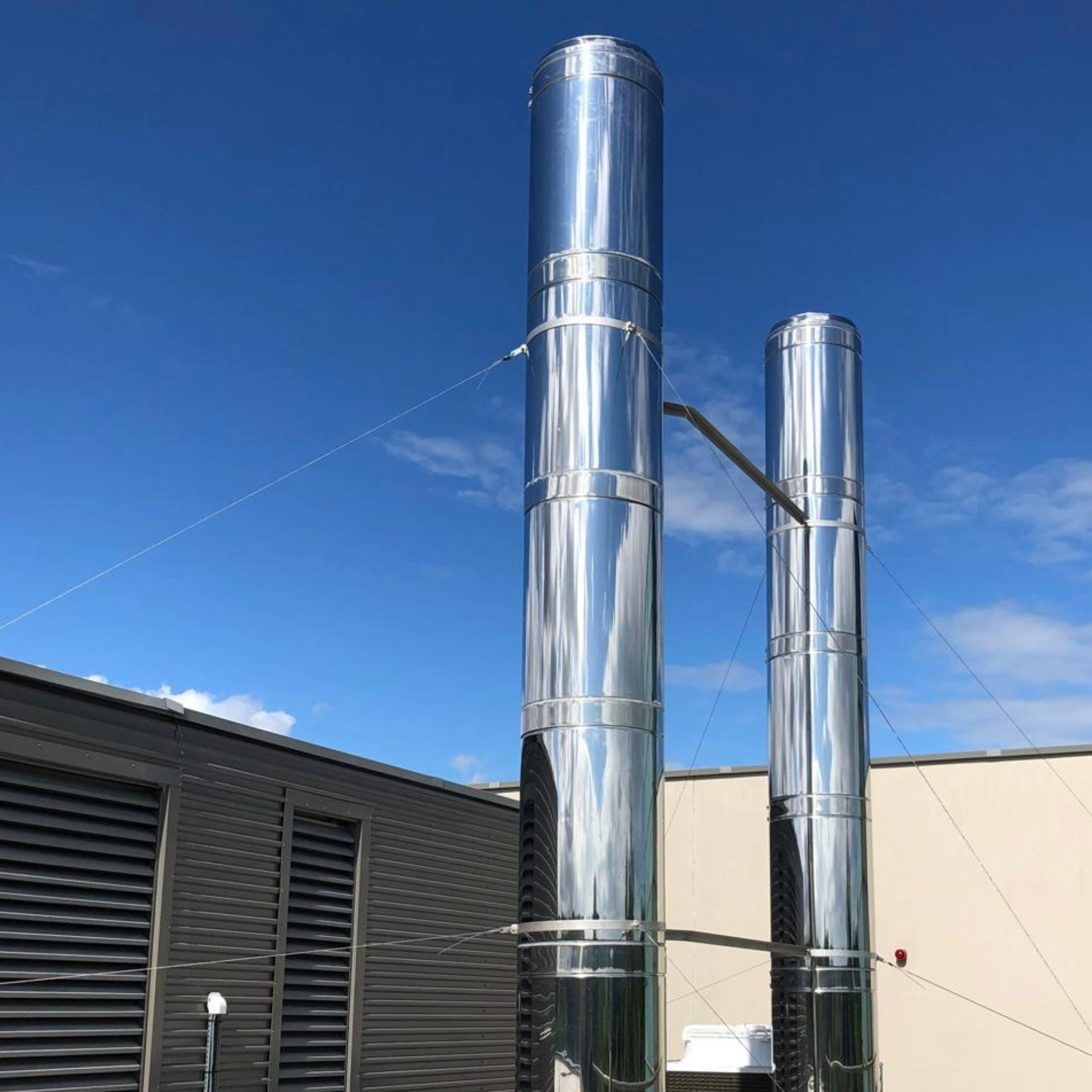

Image: Lymington Hospital Condensing Boiler

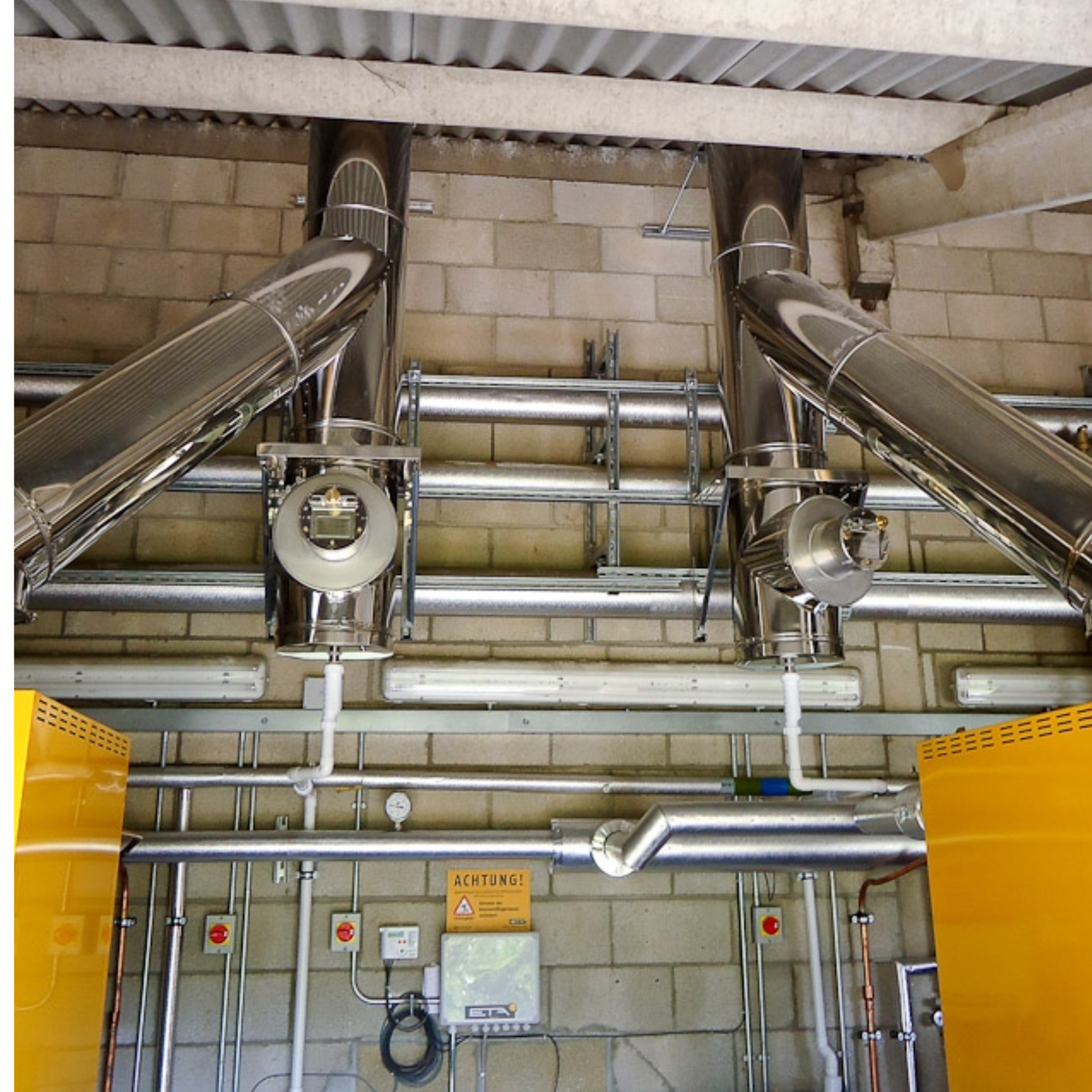

NOVA® Systems: Leading the Way for Biomass Boilers

Biomass heating, including wood pellet, chip, and log-burning boilers, requires robust flue systems to handle higher temperatures and variable emissions. NOVA® is the ideal solution for these demanding applications.

Case Study: Evogreen Hewitt School Biomass Boiler Install

Evogreen Hewitt School sought to reduce its carbon footprint by installing a biomass boiler system, powered by wood pellets, to meet its heating needs sustainably. The challenge was to find a flue system that could handle the higher temperatures and fluctuating emissions associated with biomass heating, while ensuring compliance with stringent environmental regulations.

Solution:
SFL’s NOVA® twin-wall flue system was chosen for its robustness and efficiency in biomass applications. Key features included:

• Explosion Relief: To prevent gas build-up in the boiler flue.
• Draft Regulation: To maintain optimal performance despite external conditions like wind.
• Fan Flue Systems: To assist in stabilising flue pressure.

Outcome:
The NOVA® system has provided safe, efficient operation, reducing the school’s reliance on fossil fuels and lowering both energy costs and carbon emissions. The installation has met all regulatory standards, with minimal ongoing maintenance required, ensuring a long service life for the biomass boiler.

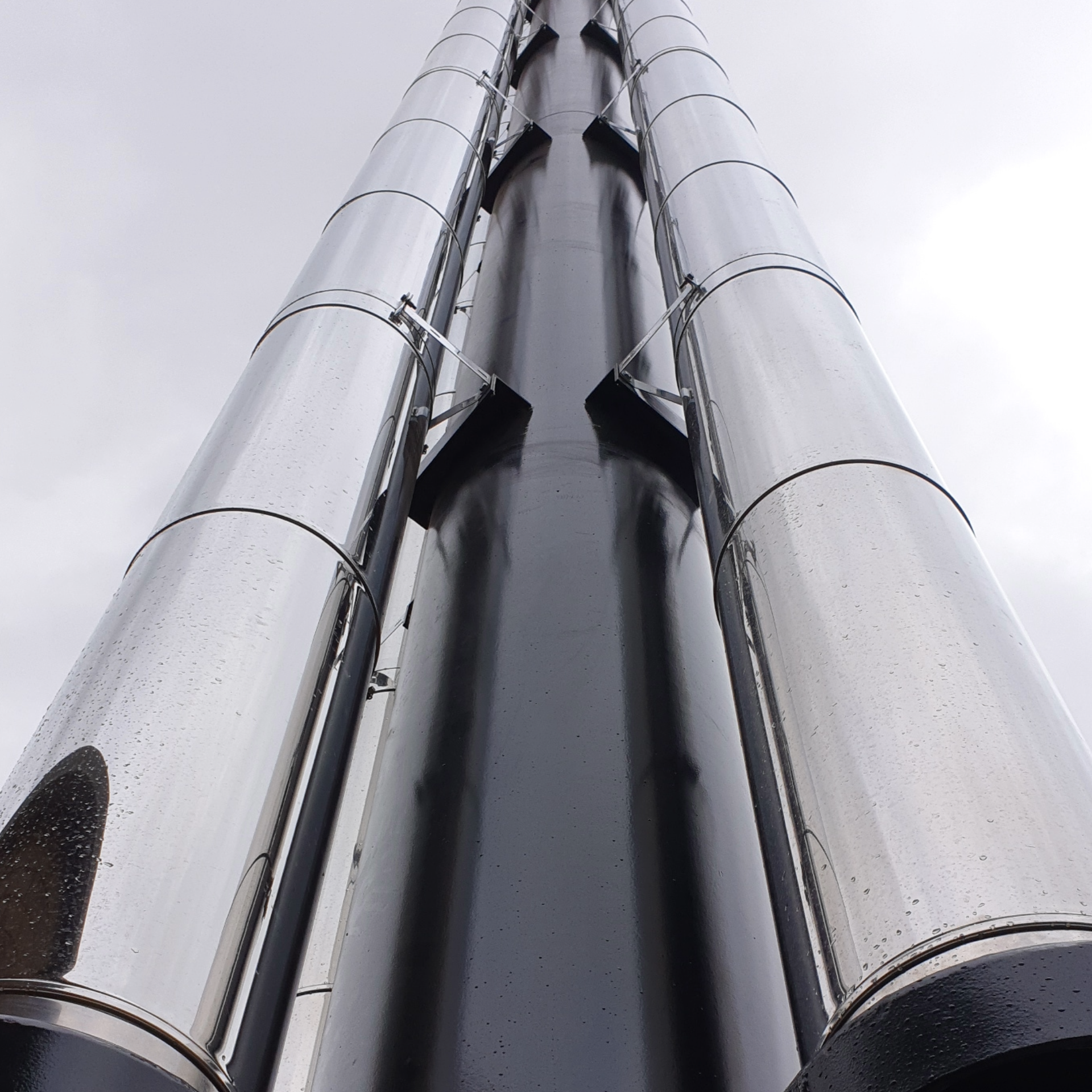

Case Study: Steam Boiler System at Key Facility

NOVA® Steam Boiler Flue System: Robust and Efficient Performance

Serving a critical facility, an ageing multiple steam boiler plant had reached the end of its serviceable life. The existing chimney system was not only impractical to repair but also economically unviable. After thorough investigations, it was decided to replace the external installation with a modern system. The solution called for a new supporting mast and chimney system.

Our NOVA® Twin Wall Flue System was installed at an impressive 17m height, replacing an ageing and corroded system. The new installation comprises 3 x 300mm Dia pipes, servicing three 41-year-old Hoval steam boilers, with a customised connection onto a 17m mast. This upgrade ensures safe, reliable operation in the harsh conditions required by steam boilers.

SFL’s NOVA® twin wall flue system was specified, with full technical details calculated to ensure compatibility with the new supporting mast and civil groundworks.

The result was the successful installation of a triple vertical 17m, 300mm Dia NOVA® chimney system and supporting mast. The system now provides the existing Hoval steam boilers with many more years of reliable, efficient service. SFL’s technical support and high-quality products continue to meet the demands of industries requiring top-tier heating solutions.

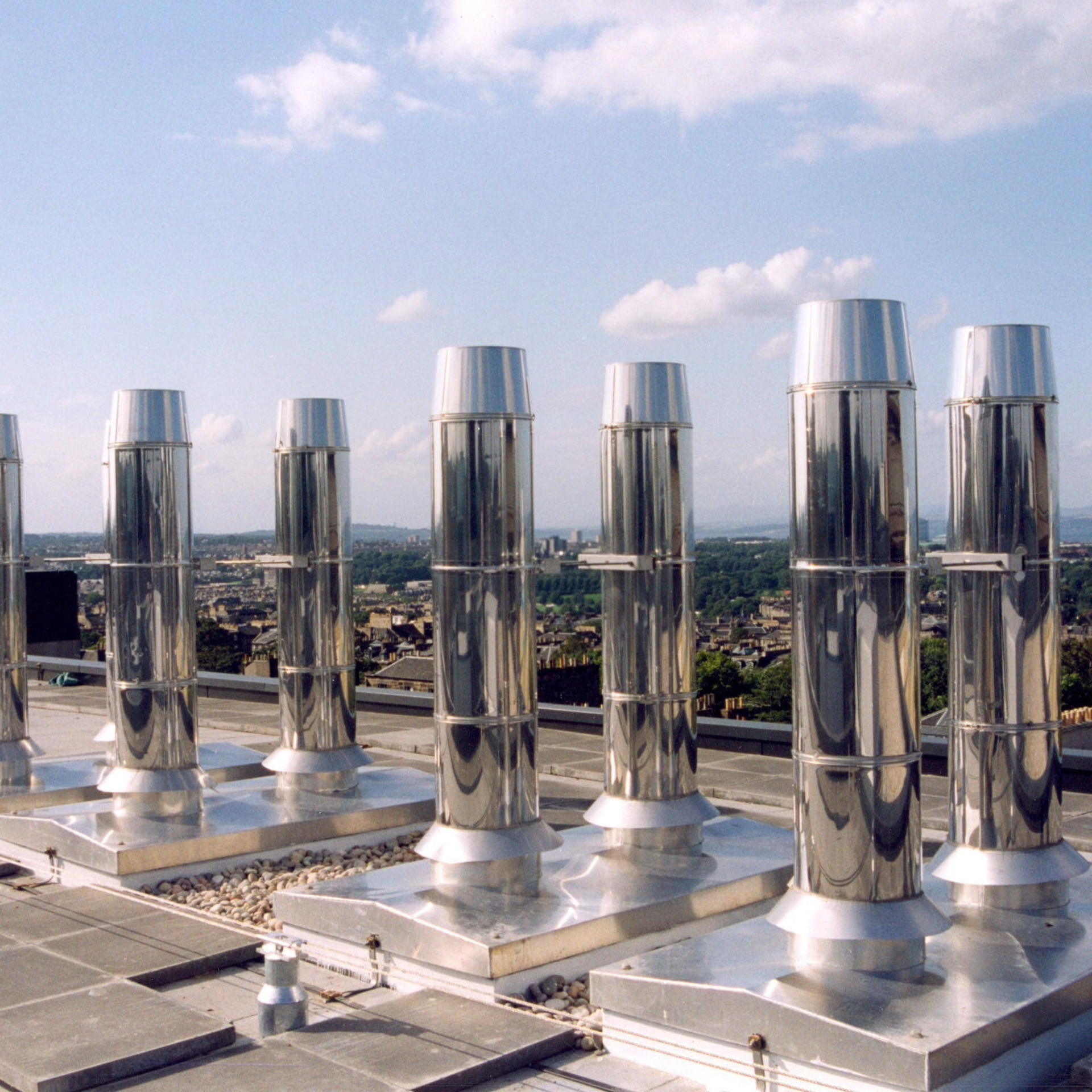

EUROPA®: A Premium Solution for CHP Systems

CHP systems combine heat and power, offering increased energy efficiency. SFL’s EUROPA® and EUROPA PLUS® flue systems are ideal for managing the flue gases from these high-efficiency units.

Key Design Considerations:

• Attenuation:Some CHP systems require additional noise absorption, which can be integrated into the flue design.
  • Condensate Drains: Essential for system efficiency, condensate drains prevent clogs and ensure smooth operation.
  • Test Points: Regular checks ensure the system operates within optimal parameters.

EUROPA® provides fast, flexible installations with long-term reliability, making it ideal for both large and small CHP applications

Conclusion: Future-Proof Solutions for Commercial Heating

SFL Flue & Chimneys sets the standard for high-performance flue systems across various commercial heating applications. Whether working with condensing boilers, biomass systems, CHP units, or steam boilers, SFL’s solutions optimise efficiency, reduce emissions, and comply with strict regulations.

By choosing SFL, you invest in the long-term reliability and performance of your heating system. With a focus on durability, efficiency, and ease of maintenance, SFL offers commercial heating professionals the peace of mind that their systems will provide optimum performance for many years to come!

For more information call +44 (0) 1271 326633.
